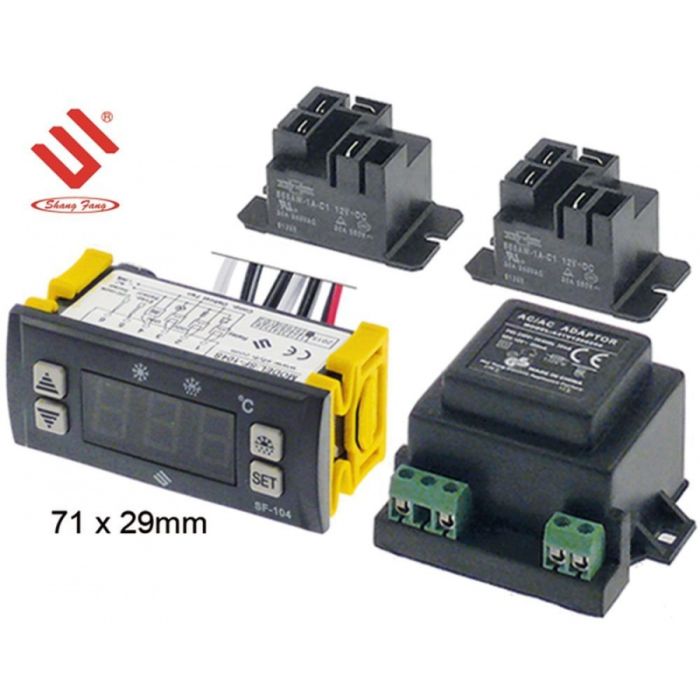

electronic controller SHANGFANG type 71x29mm 230V voltage AC NTC relay outputs 3 NO-30A NO-30A
Livrare estimată: 26.08.2026
SKU
402148
742,01 RON
613,23 RON
Livrare oriunde in tara prin curier rapid.
| producer | SHANGFANG |
| type | SF-104S |
| mounting measurements | 71x29 mm |
| supply | 230 V |
| voltage type | AC |
| probe type | NTC |
| relay outputs | 3 |
| relay output 1 | NO-30A |
| relay output 2 | NO-30A |
| relay output 3 | NO-30A |
| relay output 4 | - |
| relay output 5 | - |
| relay output 6 | - |
| input 1 | NTC |
| input 2 | NTC |
| input 3 | - |
| input 4 | - |
| input 5 | - |
| application | Comp |
| front dimensions | 77x35 mm |
| built-in depth | 40 mm |
| kind of protection | IP54 |
| accuracy | 1 % |
| mounting | built-in version |
| HACCP | - |
| real time clock | - |
| alarm | - |
| scope of delivery | incl. relay, cable harness, probe and transformer |
| interface RS485 | - |
| defrosting function | yes |
| measuring range | -45 up to +45 ﾰC |
| display | 3 digits |
| buzzer internal | - |
| Producator | Dexion, MBM-Italia |
|---|
