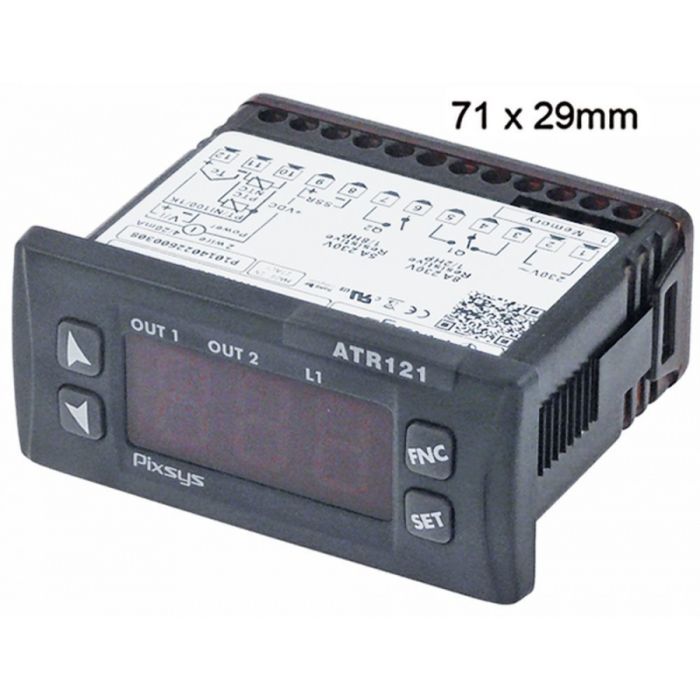

electronic controller PIXSYS type ATR121-B 71x29mm 230 V voltage AC
Livrare estimată: 26.08.2026
SKU
381309
1.022,14 RON
844,74 RON
Livrare oriunde in tara prin curier rapid.
| producer | PIXSYS |
| type | ATR121-B |
| mounting measurements | 71x29 mm |
| supply | 230 V |
| voltage type | AC |
| probe type | NTC/PTC/Pt100/Pt1000/TC(J,K)/mV/mA |
| relay outputs | 3 |
| relay output 1 | CO-8A(3) |
| relay output 2 | NO-5A(3) |
| relay output 3 | 8VDC/20mA |
| relay output 4 | - |
| relay output 5 | - |
| relay output 6 | - |
| input 1 | NTC/PTC/Pt100/Pt1000/TC(J,K)/mV/mA |
| input 2 | - |
| input 3 | - |
| input 4 | - |
| input 5 | - |
| function | - |
| application | - |
| front dimensions | 35x77 mm |
| built-in depth | 54 mm |
| kind of protection | IP64 |
| accuracy | 1 % |
| mounting | built-in version |
| real time clock | - |
| buzzer internal | - |
| scope of delivery | - |
| defrosting function | no |
| measuring range | dependend on probe ﾰC |
| display | 3 digits |
| Producator | Cuppone |
|---|
