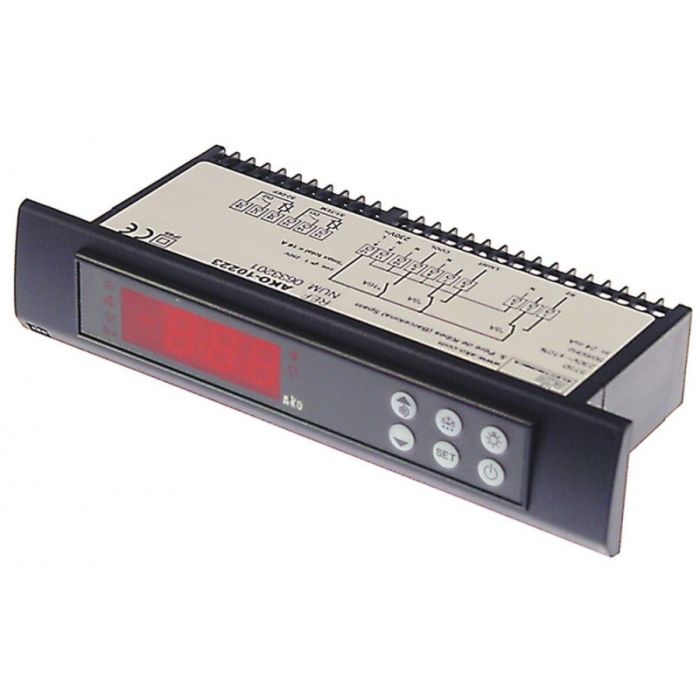

Controler tip 10223 - Cod 379862
Livrare estimată: 26.08.2026
SKU
379862
1.105,94 RON
914,00 RON
Livrare oriunde in tara prin curier rapid.
| producer | AKO |
| type | 10223 |
| mounting measurements | 149x30 mm |
| supply | 230 V |
| voltage type | AC |
| probe type | NTC |
| relay outputs | 3 |
| relay output 1 | NO-12A(9) |
| relay output 2 | NO-8A(3) |
| relay output 3 | CO-8A(4) |
| relay output 4 | - |
| relay output 5 | - |
| relay output 6 | - |
| input 1 | NTC |
| input 2 | NTC/DI |
| input 3 | DI |
| input 4 | - |
| input 5 | - |
| function | - |
| application | - |
| front dimensions | - mm |
| built-in depth | 58 mm |
| mode of operation | - |
| kind of protection | IP65 |
| accuracy | 1 % |
| mounting | built-in version |
| HACCP | - |
| real time clock | - |
| buzzer internal | - |
| scope of delivery | 1xNTC probe inclusive |
| interface RS485 | - |
| measuring range | -50 up to +99 °C |
| display | 3½ digits |
