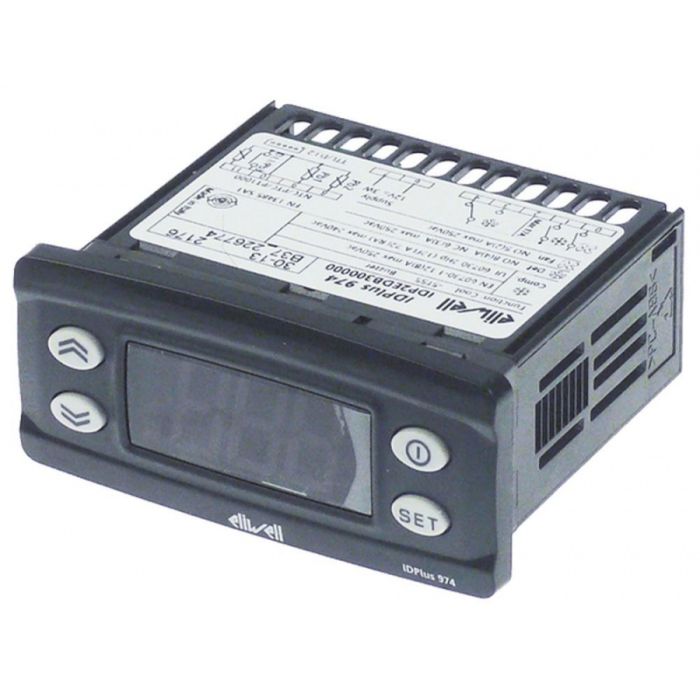

electronic controller ELIWELL type IDPlus 974 model IDP2EDB300000 71x29mm 12V voltage AC/DC
Livrare estimată: 26.08.2026
SKU
379836
643,72 RON
532,00 RON
Livrare oriunde in tara prin curier rapid.
| producer | ELIWELL |
| type | IDPlus 974 |
| model | IDP2EDB300000 |
| mounting measurements | 71x29 mm |
| supply | 12 V |
| voltage type | AC/DC |
| probe type | NTC/PTC/Pt1000 |
| relay outputs | 3 |
| relay output 1 | NO-12A(12) |
| relay output 2 | CO-8A(4) |
| relay output 3 | NO-5A(2) |
| relay output 4 | - |
| relay output 5 | - |
| relay output 6 | - |
| input 1 | NTC/PTC/Pt1000 |
| input 2 | NTC/PTC/Pt1000 |
| input 3 | NTC/PTC/Pt1000 |
| input 4 | DI |
| input 5 | - |
| front dimensions | 74x32 mm |
| built-in depth | 67 mm |
| kind of protection | IP65 |
| HACCP | - |
| real time clock | - |
| buzzer internal | yes |
| measuring range | -55 up to +150 ﾰC |
| display | 3ﾽ digits |
| Producator | Eliwell |
|---|
