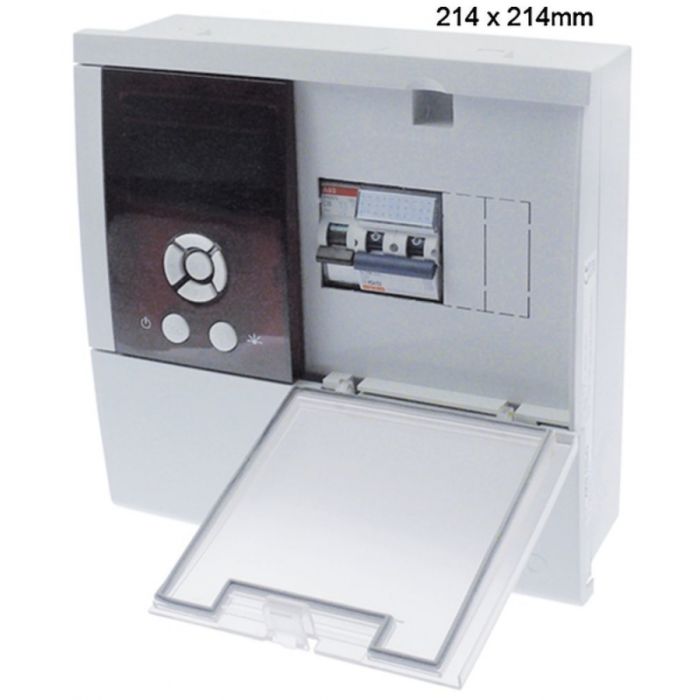

switch box AKO type AKO-15643 214x214mm 230 V voltage AC NTC relay outputs 6 CO-20A(8) 5.5kW/3P
Livrare estimată: 26.08.2026
SKU
379816
2.905,94 RON
2.401,60 RON
Livrare oriunde in tara prin curier rapid.
| producer | AKO |
| type | AKO-15643 |
| mounting measurements | 214x214 mm |
| supply | 230 V |
| voltage type | AC |
| probe type | NTC |
| relay outputs | 6 |
| relay output 1 | CO-20A(8) |
| relay output 2 | 5.5kW/3P |
| relay output 3 | NO-2.2A(2.2) |
| relay output 4 | NO-2.2A(2.2) |
| relay output 5 | CO-8A(4) |
| relay output 6 | NO-2.2A(2.2) |
| input 1 | NTC |
| input 2 | NTC |
| input 3 | NTC |
| input 4 | DI |
| input 5 | DI |
| on/off relay | - |
| inputs | 5 |
| function | - |
| data logger | - |
| front dimensions | - mm |
| built-in depth | - mm |
| mode of operation | - |
| kind of protection | IP65 |
| accuracy | 1 % |
| mounting | wall-mounted version |
| HACCP | yes |
| real time clock | yes |
| buzzer internal | yes |
| interface RS485 | yes |
| printer | - |
| scope of delivery | 1x NTC probe inclusive |
| standard | - |
| operation without mains power | 48 h - |
| measuring range | -50 up to +99 ﾰC |
| display | 3ﾽ digits |
| Producator | . |
|---|
