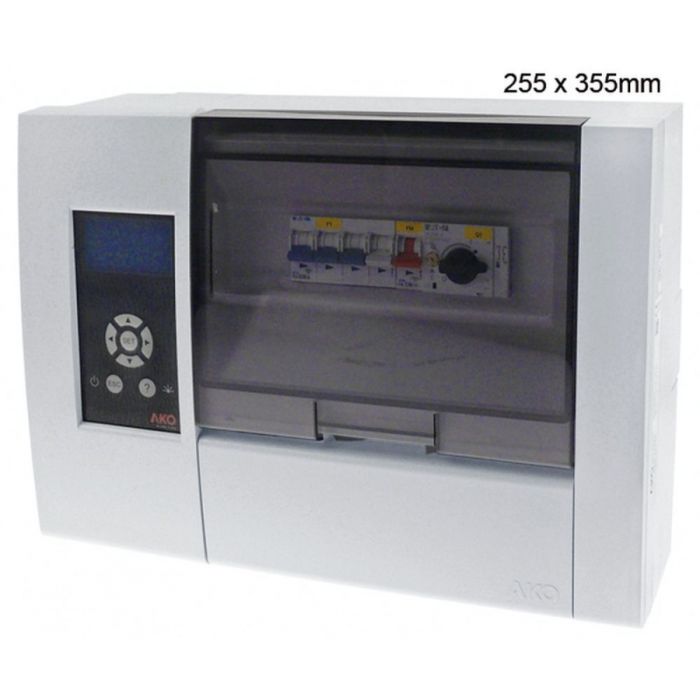

refrigeration controller for cold rooms AKO type AKO-15680, 255x355 mm, 400 V / 3PV, NTC
Livrare estimată: 26.08.2026
SKU
378467
6.069,48 RON
5.016,10 RON
Livrare oriunde in tara prin curier rapid.
| producer | AKO |
| type | AKO-15680 |
| mounting measurements | 255x355 mm |
| supply | 400V/3P V |
| voltage type | AC |
| probe type | NTC |
| relay outputs | 6 |
| relay output 1 | 2.5-4 A |
| relay output 2 | 7 kW/3P |
| relay output 3 | NO-3A(3) |
| relay output 4 | NO-2A(2) |
| relay output 5 | NO-2A(2) |
| relay output 6 | CO-8A(4) |
| input 1 | NTC/PTC |
| input 2 | NTC/PTC |
| input 3 | NTC/PTC |
| input 4 | DI |
| input 5 | DI |
| inputs | 5 |
| kind of protection | IP65 |
| accuracy | 1 % |
| mounting | wall-mounted version |
| HACCP | yes |
| real time clock | yes |
| buzzer internal | yes |
| interface RS485 | yes |
| printer | - |
| scope of delivery | 3xNTC probe inclusive |
| measuring range | -40 up to +99 °C |
| display | 3½ digits |
| Producator | AKO |
|---|
