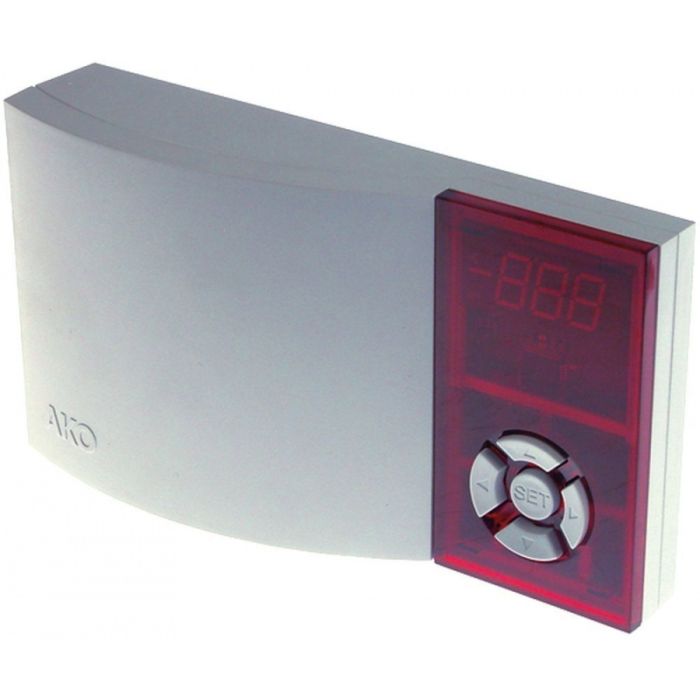

electronic controller AKO type AKO-D14622-C 174x94x42mm supply 90-240VAC voltage AC NTC/PTC
Livrare estimată: 26.08.2026
SKU
378433
1.126,51 RON
931,00 RON
Livrare oriunde in tara prin curier rapid.
| producer | AKO |
| type | AKO-D14622-C |
| mounting measurements | 174x94x42 mm |
| supply | 90-240 VAC |
| voltage type | AC |
| probe type | NTC/PTC |
| relay outputs | 3 |
| relay output 1 | NO-12A(9) |
| relay output 2 | NO-5A(4) |
| relay output 3 | NO-5A(4) |
| relay output 4 | - |
| relay output 5 | - |
| relay output 6 | - |
| input 1 | NTC/PTC |
| input 2 | DI |
| input 3 | DI |
| input 4 | - |
| input 5 | - |
| emergency switch | - |
| function | - |
| application | - |
| front dimensions | - mm |
| built-in depth | - mm |
| mode of operation | - |
| kind of protection | - |
| accuracy | 1 % |
| mounting | wall-mounted version |
| HACCP | - |
| real time clock | - |
| buzzer internal | - |
| interface RS485 | yes |
| printer | - |
| scope of delivery | 1x NTC probe inclusive |
| operation without mains power | - h |
| measuring range | -50 up to +150 ﾰC |
| display | 3ﾽ digits |
| Producator | . |
|---|
