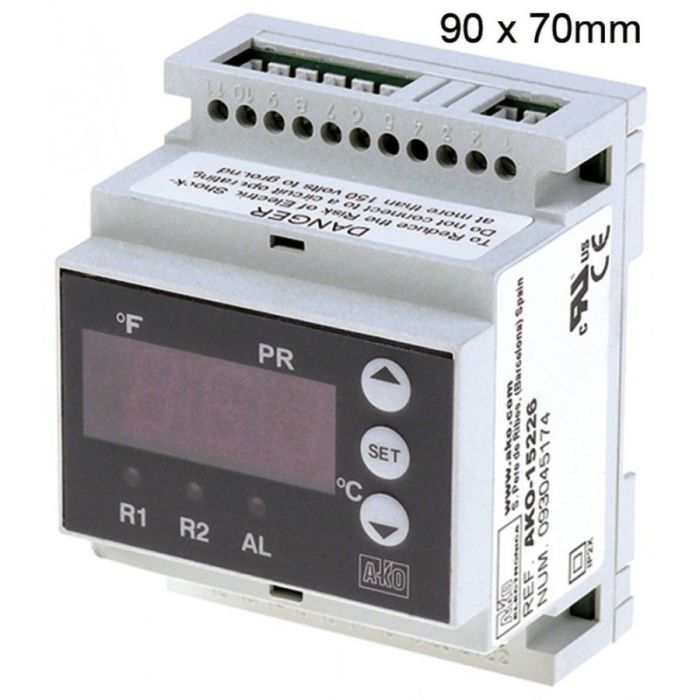

Controler tip AKO-15226 - Cod 378246
Livrare estimată: 26.08.2026
SKU
378246
1.440,90 RON
1.190,83 RON
Livrare oriunde in tara prin curier rapid.
| producer | AKO |
| type | AKO-15226 |
| mounting measurements | 90x70x58 mm |
| supply | 230 V |
| voltage type | AC |
| probe type | NTC/PTC/Pt100/TC(J,K) |
| relay outputs | 2 |
| relay output 1 | CO-8A(4) |
| relay output 2 | CO-8A(4) |
| relay output 3 | - |
| relay output 4 | - |
| relay output 5 | - |
| relay output 6 | - |
| input 1 | NTC/PTC/Pt100/TC(J,K)/mA |
| input 2 | DI |
| input 3 | - |
| input 4 | - |
| input 5 | - |
| function | universal |
| front dimensions | - mm |
| built-in depth | 61.5 mm |
| mode of operation | - |
| kind of protection | IP2x |
| accuracy | 1 % |
| mounting | DIN rail |
| measuring range | dependend on probe °C |
| display | 3½ digits |
