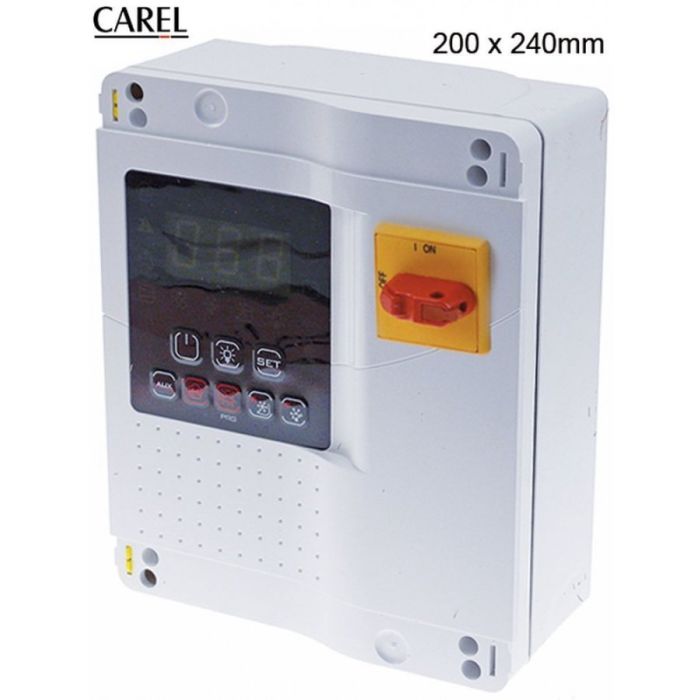

refrigeration controller for cold rooms CAREL MD33D5FB00 200x240mm 230V voltage AC NTC
Livrare estimată: 26.08.2026
SKU
378146
2.258,77 RON
1.866,75 RON
Livrare oriunde in tara prin curier rapid.
| producer | CAREL |
| type | MD33D5FB00 |
| mounting measurements | 200x240 mm |
| built-in depth | - mm |
| supply | 230 V |
| voltage type | AC |
| probe type | NTC |
| relay outputs | 5 |
| relay output 1 | CO-30A(12) |
| relay output 2 | CO-16A(8) |
| relay output 3 | CO-10A(5) |
| relay output 4 | CO-10A(5) |
| relay output 5 | CO-16A(3) |
| relay output 6 | - |
| input 1 | NTC |
| input 2 | DI |
| input 3 | DI |
| input 4 | DI |
| input 5 | - |
| HACCP | yes |
| buzzer internal | yes |
| scope of delivery | - |
| interface RS485 | IR/RS-485 |
| door switch | - |
| real time clock | yes |
| printer | - |
| kind of protection | IP54 |
| version | wall-mounted version |
| measuring range | -50 up to +150 ﾰC |
| display | 3 digits |
| inputs | 3 |
| room temperture probe imput | NTC |
| defrost temperature probe | NTC |
| temperture probe 3 | - |
| defrost relay DEF | CO-16A(8) |
| fan relay | CO-10A(5) |
| digital inputs | 3 |
| compressor relay | CO-30A(12) |
| light relay | CO-10A(5) |
| alarm relay | - |
| auxiliary relay | CO-16A(3) |
| Producator | . |
|---|
