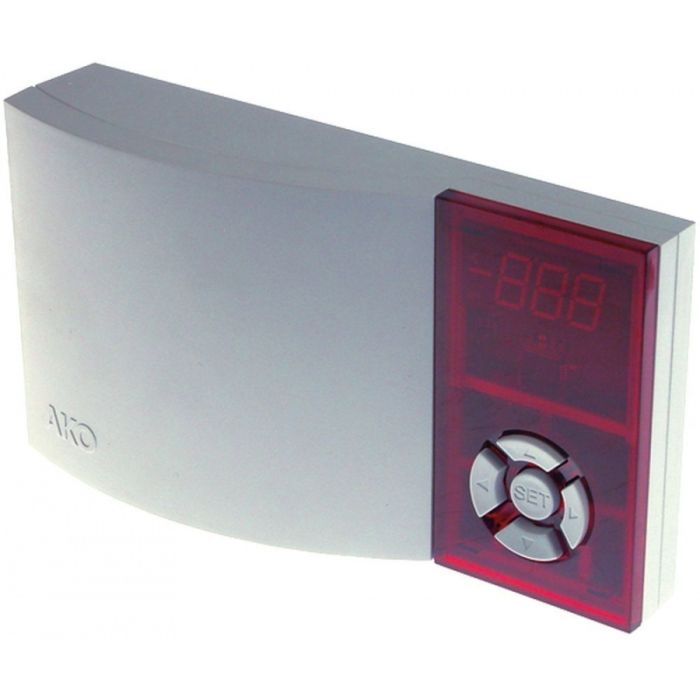

electronic controller AKO type AKO-D14642 174x94x42mm supply 230 VAC voltage AC NTC/PTC
Livrare estimată: 26.08.2026
SKU
378052
1.351,81 RON
1.117,20 RON
Livrare oriunde in tara prin curier rapid.
| producer | AKO |
| type | AKO-D14642 |
| mounting measurements | 174x94x42 mm |
| supply | 230 VAC |
| voltage type | AC |
| probe type | NTC/PTC |
| relay outputs | 4 |
| relay output 1 | NO-12A(9) |
| relay output 2 | CO-8A(4) |
| relay output 3 | NO-5A(4) |
| relay output 4 | NO-5A(4) |
| relay output 5 | - |
| relay output 6 | - |
| input 1 | NTC/PTC |
| input 2 | NTC/PTC |
| input 3 | DI |
| input 4 | DI |
| input 5 | - |
| input 6 | - |
| input 7 | - |
| input 8 | - |
| input 9 | - |
| input 10 | - |
| emergency switch | - |
| function | - |
| application | refrigeration |
| front dimensions | - mm |
| built-in depth | - mm |
| mode of operation | - |
| kind of protection | - |
| accuracy | 1 % |
| mounting | wall-mounted version |
| HACCP | - |
| real time clock | yes |
| buzzer internal | - |
| interface RS485 | - |
| printer | - |
| scope of delivery | 1x NTC probe inclusive |
| operation without mains power | - h |
| measuring range | -50 up to +99 ﾰC |
| display | 3ﾽ digits |
| Producator | . |
|---|
