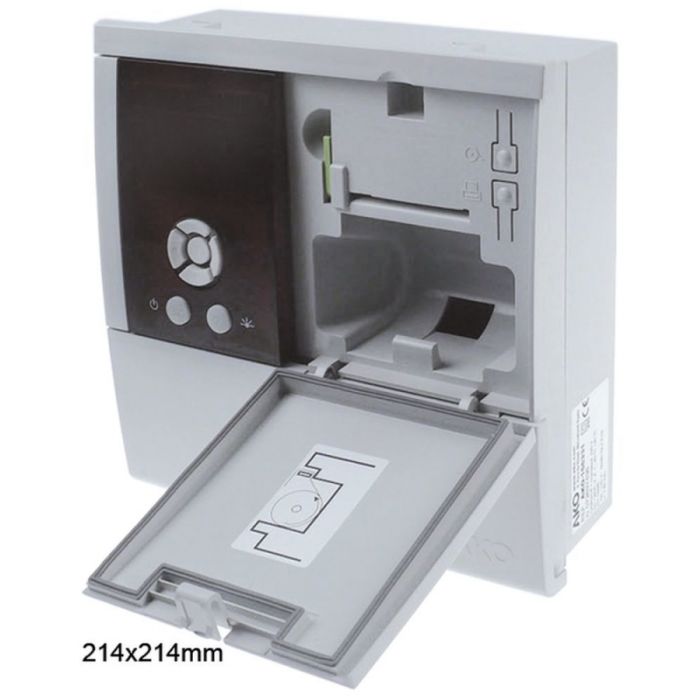

data logger AKO type AKO-156331 214x214mm supply 100-240VAC voltage AC NTC relay outputs 6
Livrare estimată: 26.08.2026
SKU
378049
6.887,47 RON
5.692,12 RON
Livrare oriunde in tara prin curier rapid.
| producer | AKO |
| type | AKO-156331 |
| mounting measurements | 214x214 mm |
| supply | 100-240 VAC |
| voltage type | AC |
| probe type | NTC |
| relay outputs | 6 |
| relay output 1 | NO-16A |
| relay output 2 | CO-16A |
| relay output 3 | NO-8A |
| relay output 4 | NO-16A |
| relay output 5 | NO-16A |
| relay output 6 | CO-8A |
| input 1 | NTC |
| input 2 | NTC |
| input 3 | NTC |
| input 4 | DI |
| input 5 | DI |
| input 6 | - |
| input 7 | - |
| input 8 | - |
| input 9 | - |
| input 10 | - |
| emergency switch | - |
| function | 1-channel with controller and printer |
| front dimensions | 230x230 mm |
| built-in depth | 90 mm |
| kind of protection | IP65 |
| accuracy | 1 % |
| mounting | wall-mounted version |
| HACCP | yes |
| real time clock | yes |
| buzzer internal | yes |
| interface RS485 | yes |
| printer | yes |
| scope of delivery | 1x NTC probe inclusive |
| standard | EN 12830 |
| operation without mains power | 24 h |
| measuring range | -50 up to +99 ﾰC |
| display | LCD |
