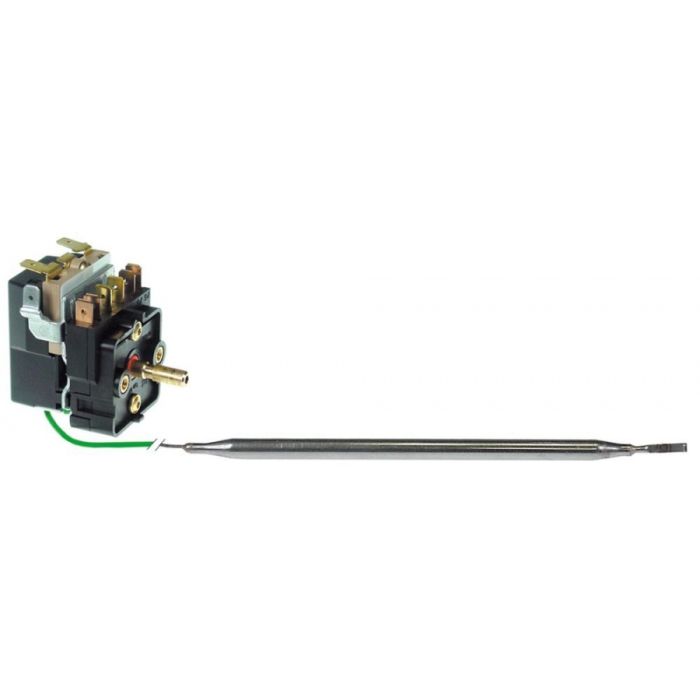

Termostat cu intrerupator 30-110 °C, contact 16 A, senzor ø 6 x 140 mm, capilar 1650 mm - 375738
Livrare estimată: 26.08.2026
SKU
375738
691,54 RON
571,52 RON
Livrare oriunde in tara prin curier rapid.
| temperature max. | 110 °C |
| operating temperature range | 30-110 °C |
| number of poles | 1 -pole |
| function | 1NO |
| switching capacity | 16 A |
| probe diameter | 6 mm |
| probe length | 140 mm |
| capillary pipe length | 1650 mm |
| capillary pipe length insulated | 1400 mm |
| shaft diameter | ø6x4.6 mm |
| shaft length | 17 mm |
| shaft position | upper |
| rotation angle | 270 ° |
| outer switch | 2NO |
| Producator | Rieber |
|---|
